ChoosethecirculararcpolishingmachineofChinesepermanentyongtaomachineforprocessingceramicstairtread,Withindustryleading7+14arcpolishingmachine,Highmachiningaccuracy,Highcostperformance,Provideacompletesetofmechanicalequipmentforceramicprocessingplant,Lookingforceramicmachineryagentsintheworldcooperation。

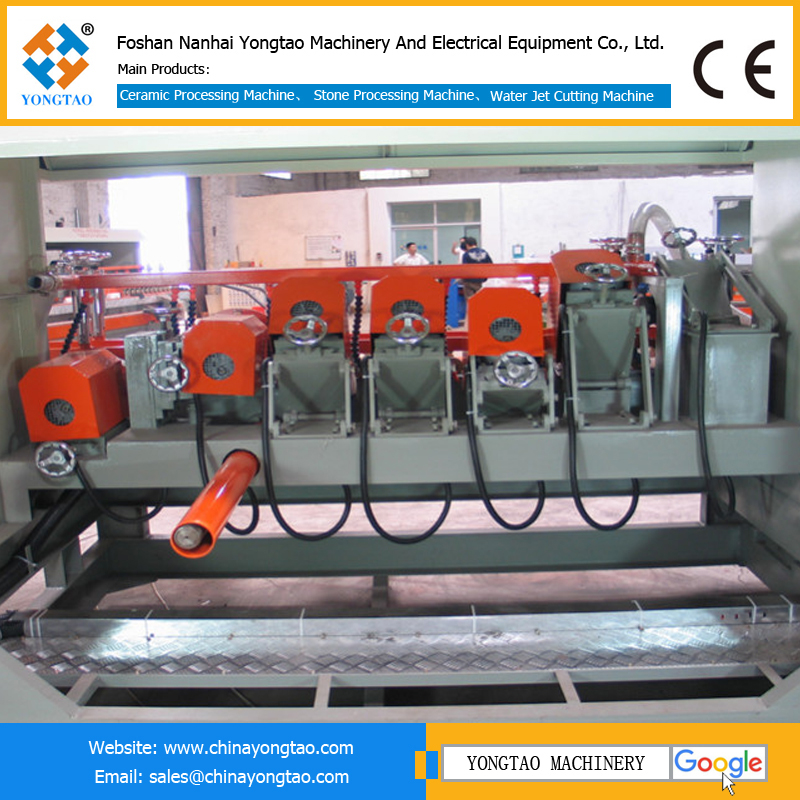

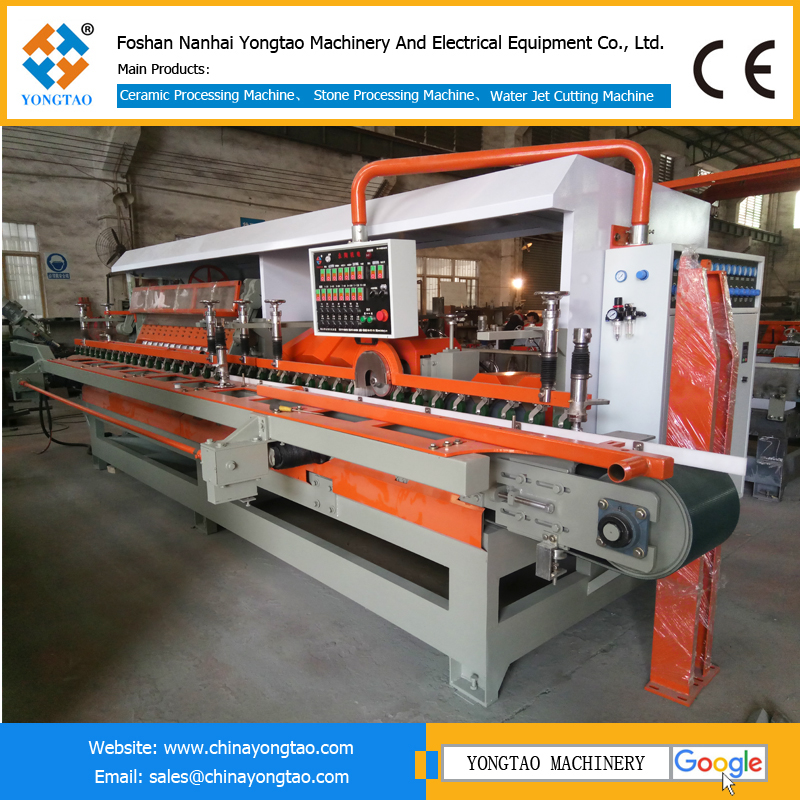

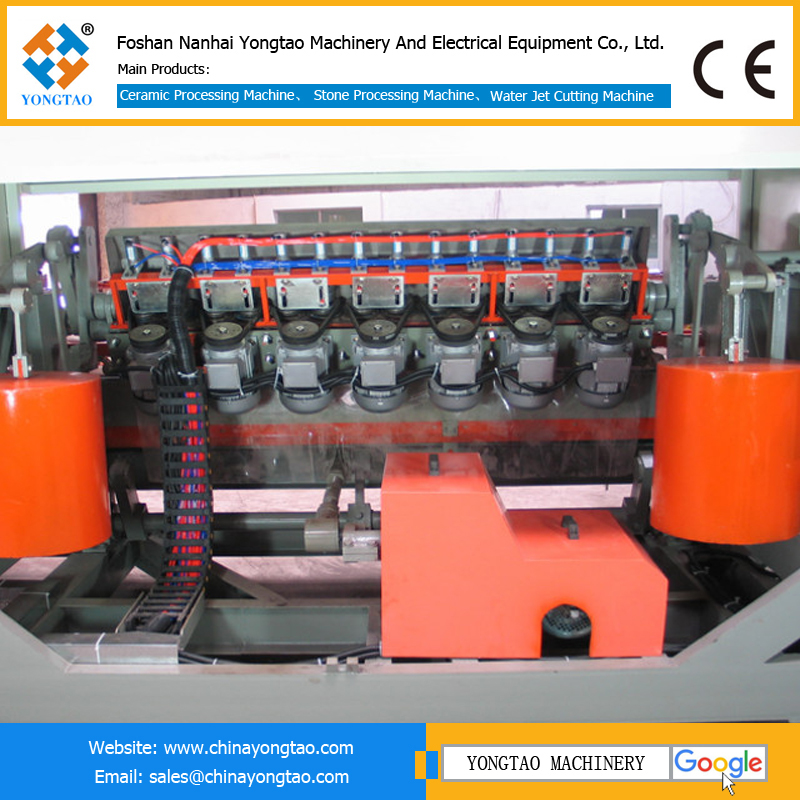

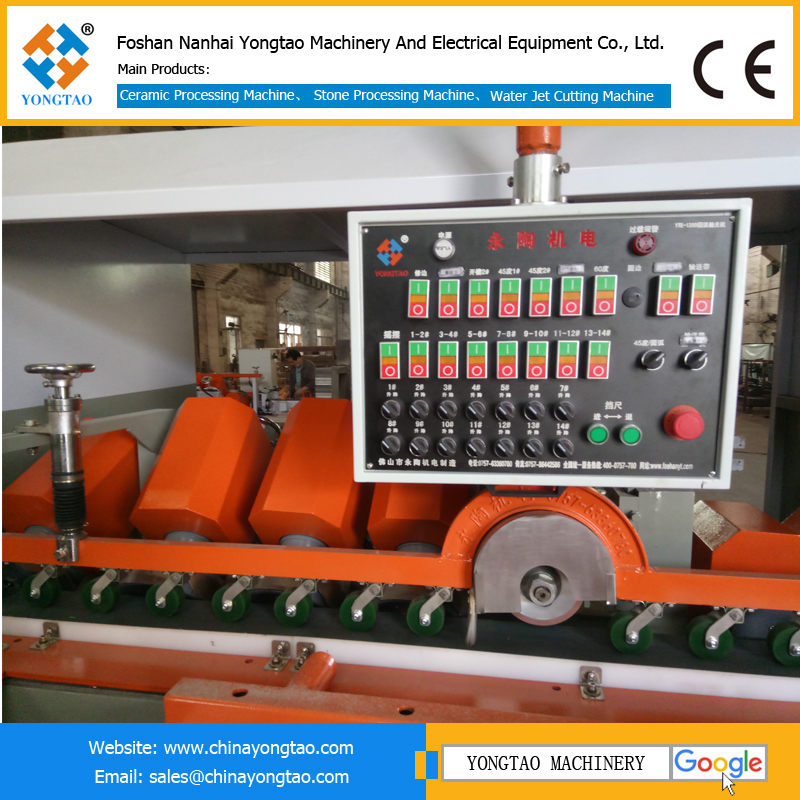

YTYP-1200 7+14 head arc polishing machine
Functions:
Deep processing of the ceramics and stone, for example:

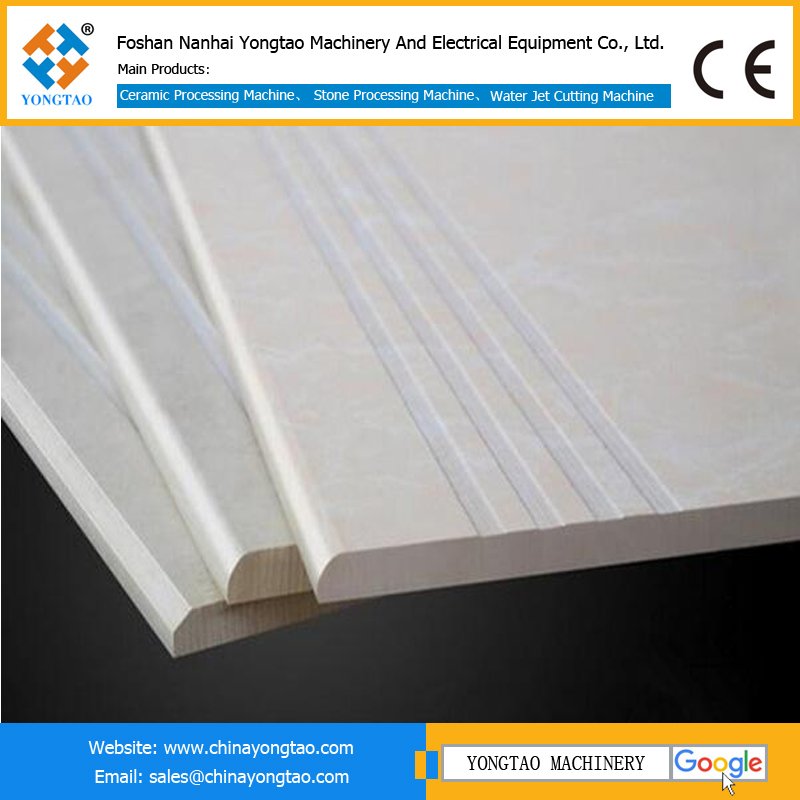

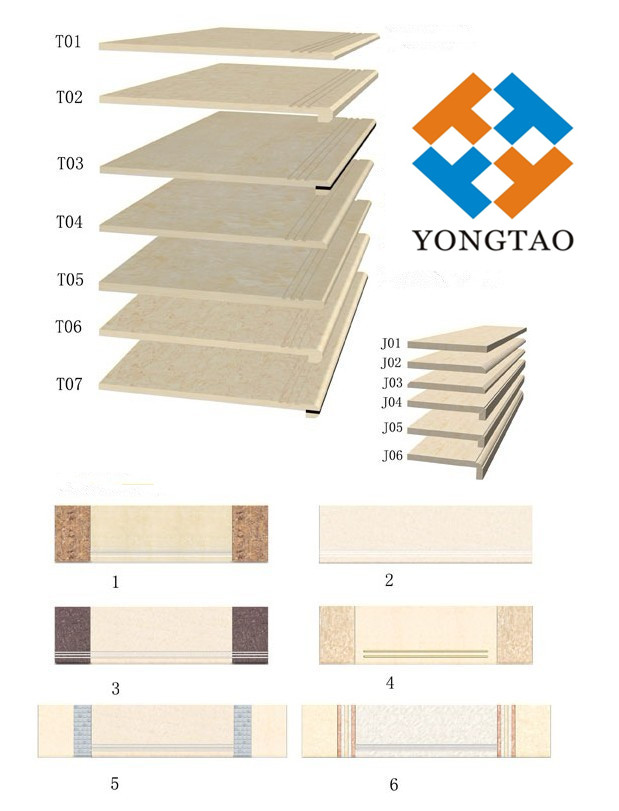

Edging, Chamfering (30°,45°,60°), Deburring, Grinding circularboundary, Polishing(circular boundary, 45°angle), slotting(anti-skid slot, wide slot)
Products Technical Parameter:
No. | Part of the machine | Units | Technical parameters |
1 | Width of Conveyor belt | MM | 300 |
2 | Nos.of Polishing head | PCS | 14 |

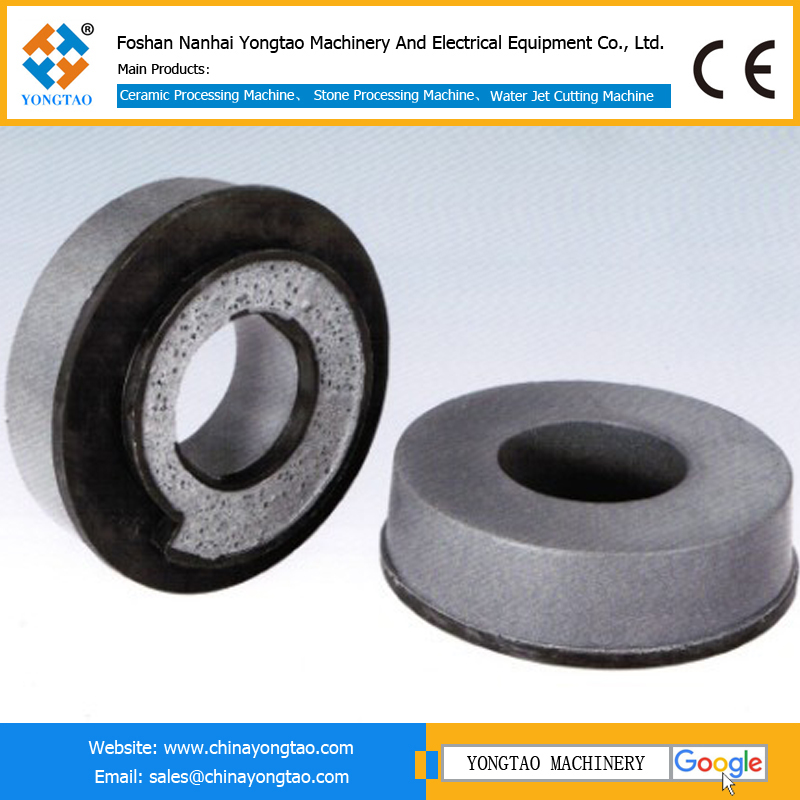

3 | Diameter of Polishing head | MM | 95 |
4 | Nos. Of Chamfering head | PCS | 6 |
5 | Diameter of Chamfering head | MM | 150/200 |
6 | Nos. Of Squaring wheel | PCS | 1 |
7 | Nos. of Anti-skid slot | PCS | 3/4 |

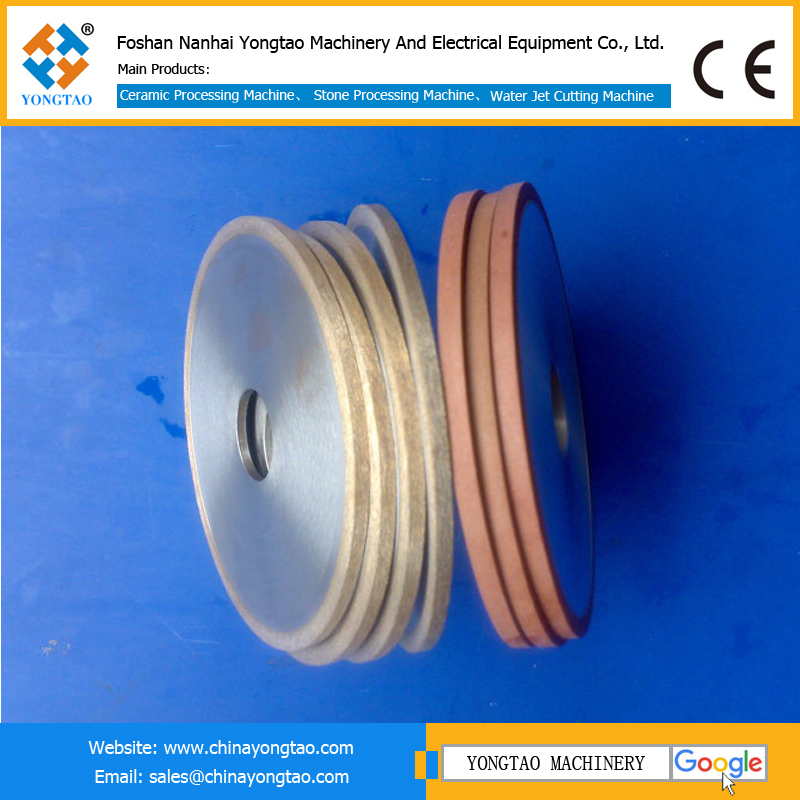

8 | Diameter of Slotting blade | MM | 150 |
9 | Width of Working | MM | 70--1200 |
10 | Speed of Polishing | M/MIN | 1.5--8 |
11 | Thickness of Processing | MM | 6--20 |
12 | Total Power | KW | 36.7 |
13 | Electricity Consumption | KW/H | 25 |
14 | Air Consumption | L/MIN | 50 |
15 | Machine Size | M | 6.3*2.2*1.8 |
16 | Machine Weight | KG | 5800 |
China Yongtao machinery is specialized in producing ceramic tile arc polishing machine, ceramic tile processing machine, ceramic tile bullnose machine, arc edge polishing machine, ceramic tile machine, cnc ceramic tile cutting machine, ceramic tile cutting machine, ceramic tile cutter, tile cutter, water jet cutting machine, 5 axis water jet cutting machine, water jet cutter, water jet, stone processing machine, stone surface profile machine, stone edging profile machine, welcome to enquiry.
YTYP-1200 7+14 head arc polishing machine
Functions:
Deep processing of the ceramics and stone, for example:
Edging, Chamfering (30°,45°,60°), Deburring, Grinding circularboundary, Polishing(circular boundary, 45°angle), slotting(anti-skid slot, wide slot)
Products Technical Parameter:
No. | Part of the machine | Units | Technical parameters |
1 | Width of Conveyor belt | MM | 300 |
2 | Nos.of Polishing head | PCS | 14 |
3 | Diameter of Polishing head | MM | 95 |
4 | Nos. Of Chamfering head | PCS | 6 |
5 | Diameter of Chamfering head | MM | 150/200 |
6 | Nos. Of Squaring wheel | PCS | 1 |
7 | Nos. of Anti-skid slot | PCS | 3/4 |
8 | Diameter of Slotting blade | MM | 150 |
9 | Width of Working | MM | 70--1200 |
10 | Speed of Polishing | M/MIN | 1.5--8 |
11 | Thickness of Processing | MM | 6--20 |
12 | Total Power | KW | 36.7 |
13 | Electricity Consumption | KW/H | 25 |
14 | Air Consumption | L/MIN | 50 |
15 | Machine Size | M | 6.3*2.2*1.8 |
16 | Machine Weight | KG | 5800 |
China Yongtao machinery is specialized in producing ceramic tile arc polishing machine, ceramic tile processing machine, ceramic tile bullnose machine, arc edge polishing machine, ceramic tile machine, cnc ceramic tile cutting machine, ceramic tile cutting machine, ceramic tile cutter, tile cutter, water jet cutting machine, 5 axis water jet cutting machine, water jet cutter, water jet, stone processing machine, stone surface profile machine, stone edging profile machine, welcome to enquiry.
Foshan Nanhai Yongtao Mechanical And Electrical Equipment Co.,Ltd.
Address：Road 3,Wuzhuang Xiaofengtian Ind.Zone,Luocun Town,Nanhai Dist.,Foshan,Guangdong,China
Tel：0086-757-63297272 Fax：0086-757-86442586 E-mail：sales@chinayongtao.com
