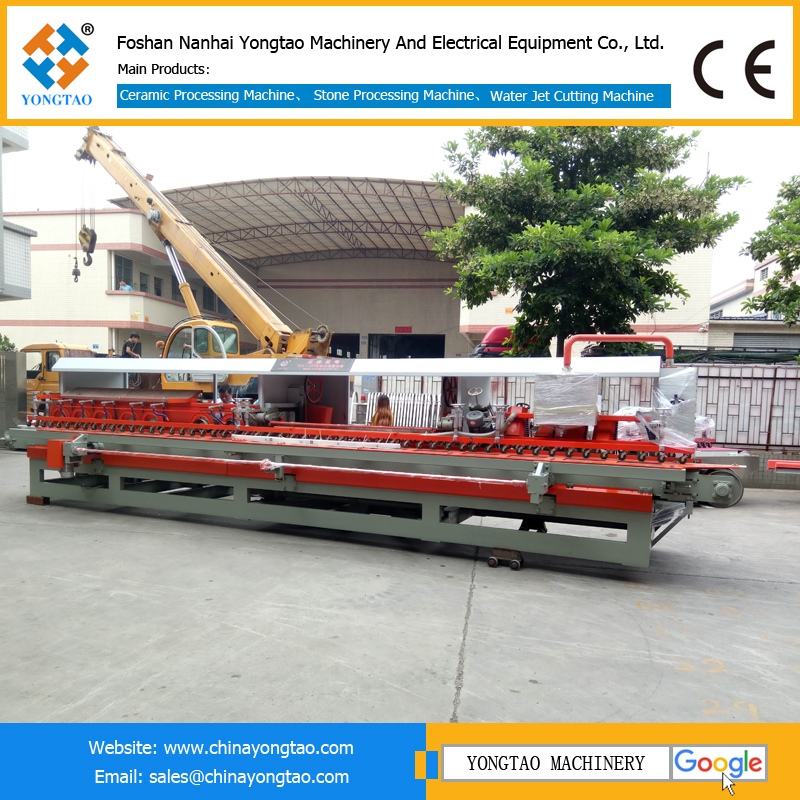

YTYXP-1200(14+7)ceramic grooving edge grinding circular arc polishing machine
Functions:
Deep processing of various shapes of the ceramics and stone, for example:

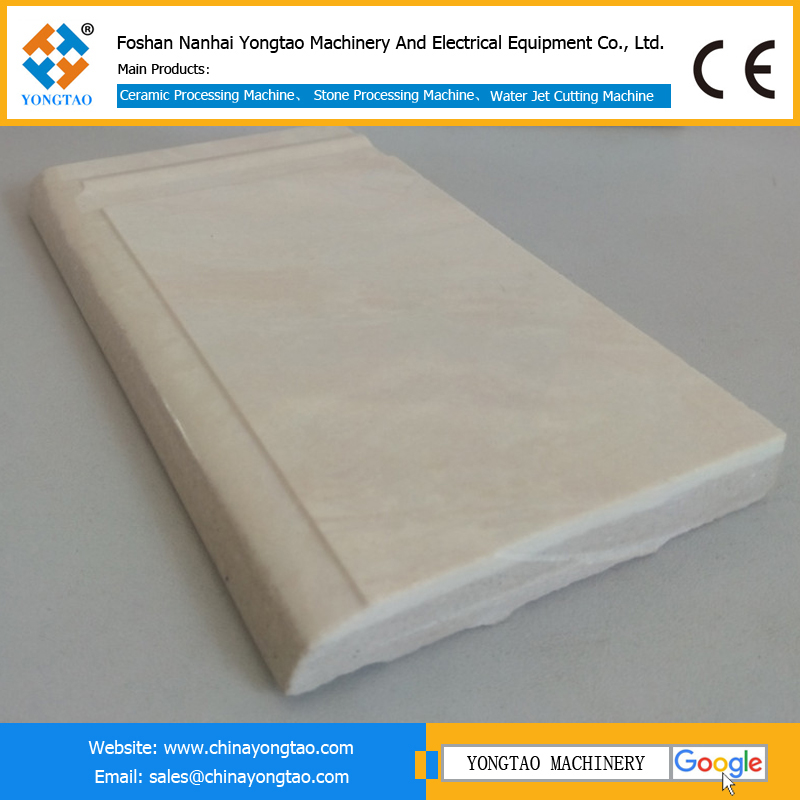

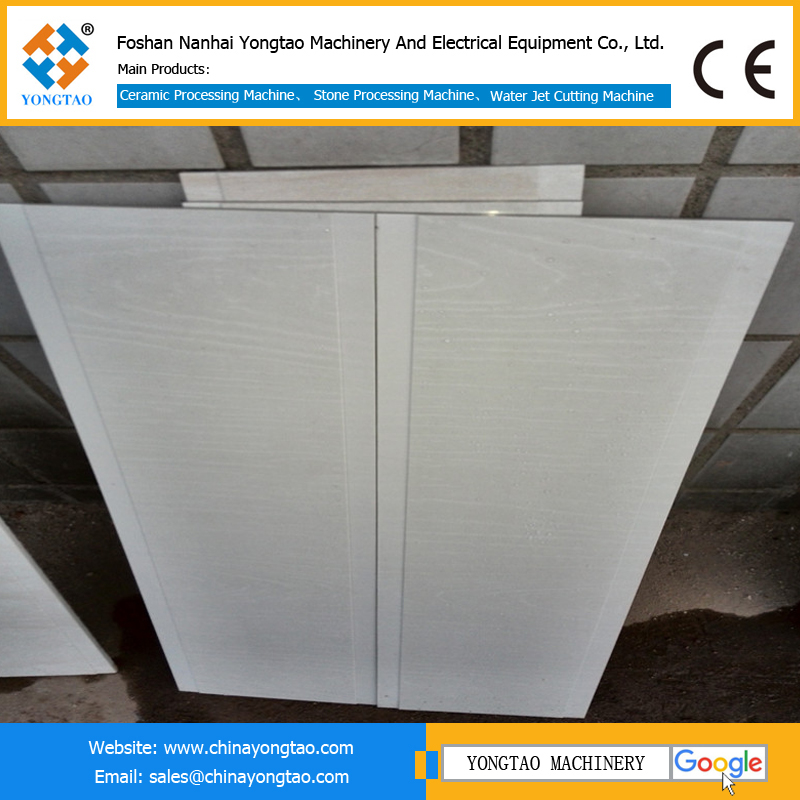

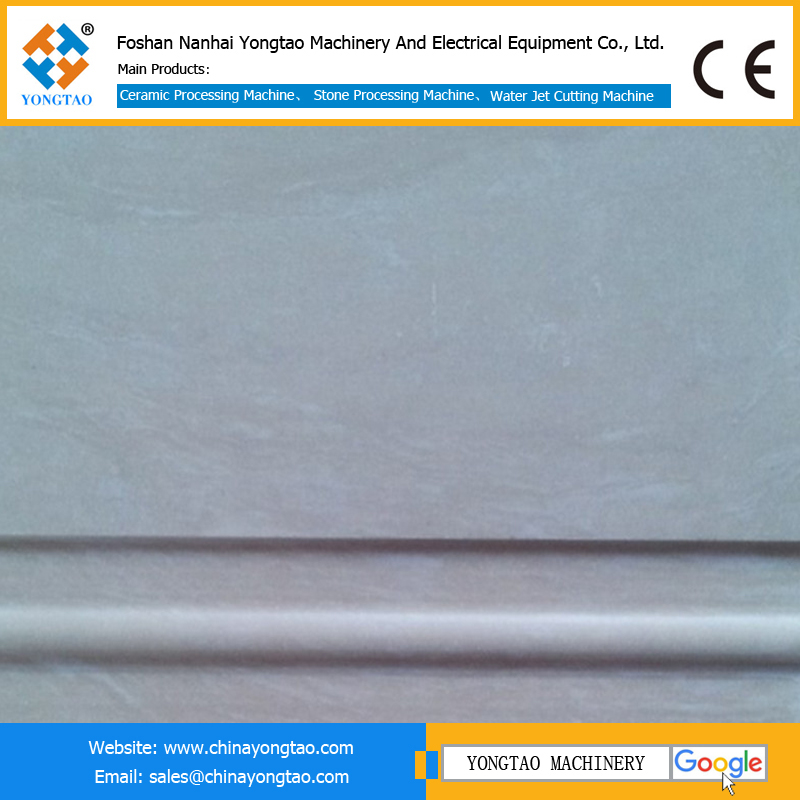

Edging, Chamfering (30°,45°,60°), Deburring, Grinding circular boundary, Polishing(circular boundary, 45°angle), slotting(anti-skid slot, wide slot polishing), France edge, Duck-billed edge, Concavoconvex edge, Nail edge, Special line etc.
Products Technical Parameter:
No. | Part of the machine | Units | Technical parameters |
1 | Width of Conveyor belt | MM | 350 |
2 | Nos.of Polishing head | PCS | 14 |
3 | Diameter of Polishing head | MM | 95 |
4 | Nos. Of Chamfering head | PCS | 6 |
5 | Diameter of Chamfering head | MM | 150/200 |
6 | Nos. Of Squaring wheel | PCS | 2 |
7 | Nos. of Anti-skid slot | PCS | 3/4 |
8 | Diameter of Slotting blade | MM | 150 |
9 | Nos. of Polishing wheel | PCS | 5 |
10 | Width of Working | MM | 80/120 |
11 | Speed of Polishing | M/MIN | 0.5--0.8 |
12 | Thickness of Processing | MM | 6--30 |
13 | Total Power | KW | 46 |
14 | Electricity Consumption | KW/H | 25 |
15 | Air Consumption | L/MIN | 50 |
16 | Machine Size | M | 8.6*2.2*2.0 |
17 | Machine Weight | KG | 7000 |
China Yongtao machinery is specialized in producing ceramic tile arc polishing machine, ceramic tile processing machine, ceramic tile bullnose machine, arc edge polishing machine, ceramic tile machine, cnc ceramic tile cutting machine, ceramic tile cutting machine, ceramic tile cutter, tile cutter, water jet cutting machine, 5 axis water jet cutting machine, water jet cutter, water jet, stone processing machine, stone surface profile machine, stone edging profile machine, welcome to enquiry.
YTYXP-1200(14+7)ceramic grooving edge grinding circular arc polishing machine
Functions:

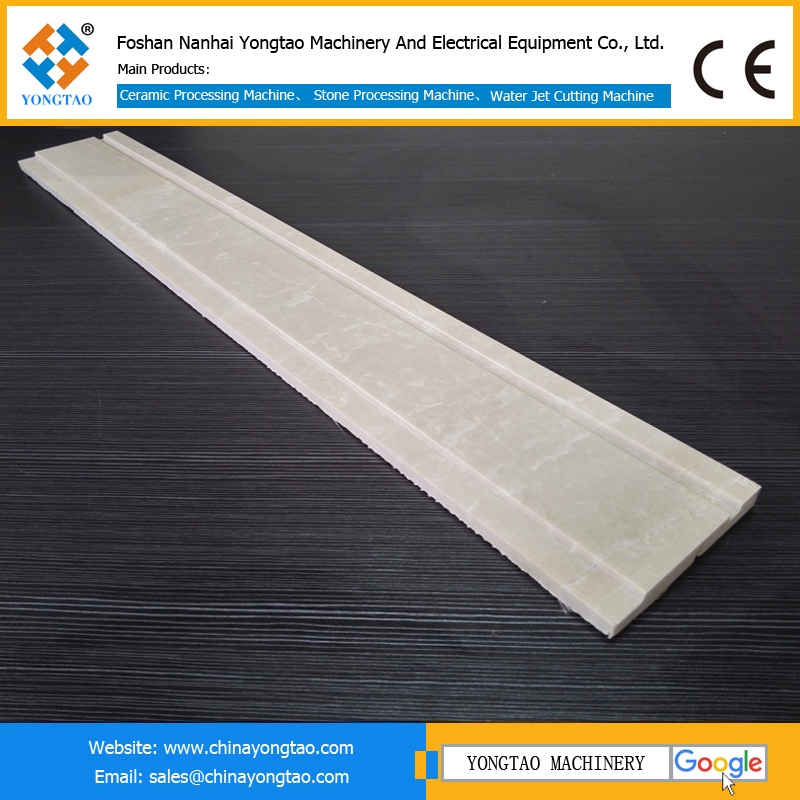

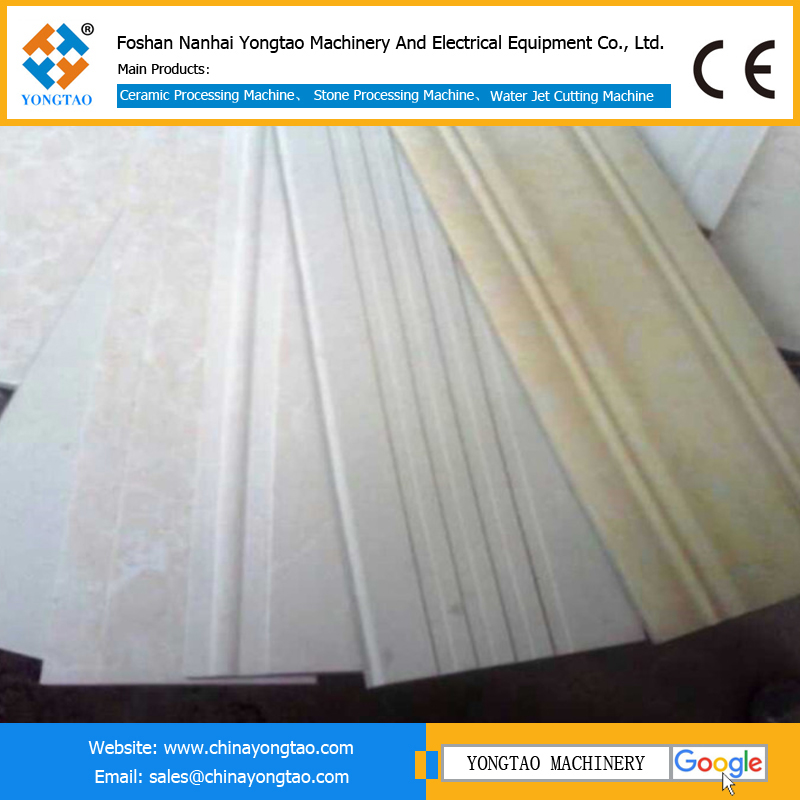

Deep processing of various shapes of the ceramics and stone, for example:
