YTQZ-800 single axis ceramic Mosaic cutting machine
Main Usage:
1. Floor tile or stone cutting, strip type or square type tile making. The tile of different width, which is among 25-600(800)mm, can be processed together.

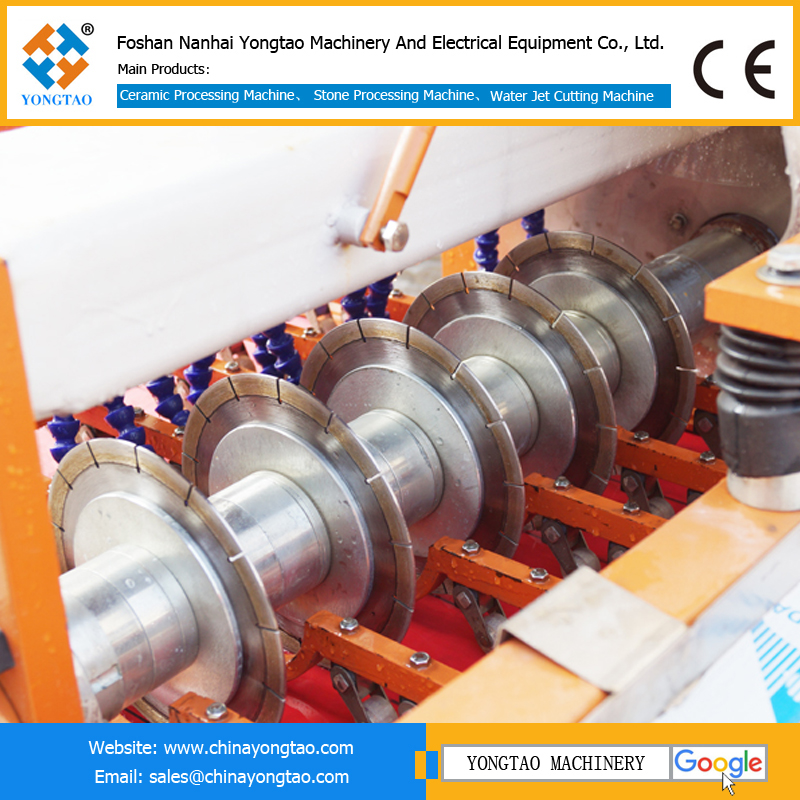

2. With self-made platen, the machine can be used to cut mosaic of 10*10.
3. Reasonable design and high processing accuracy generate high cutting efficiency and large output.
Features:
(1) Longer lifespan of principal axis is accomplished by water cooling devices adopted by bearing pedestal which prevent the heating and high temperature among using.

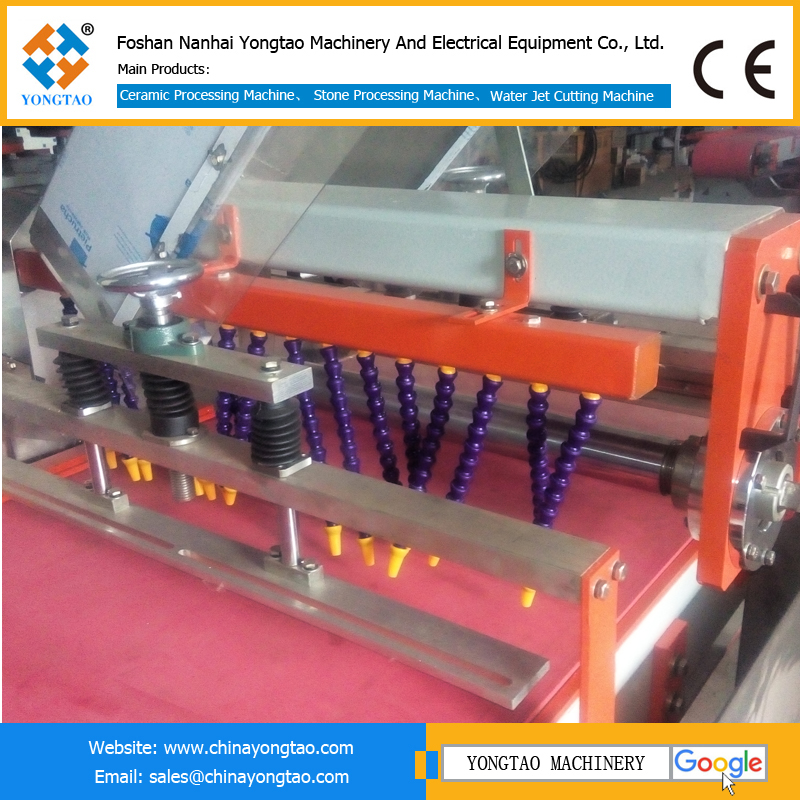

(2) V type conveyor guiding is adopted to guarantee the conveying precision.
(3) Due to the structure of lifting dovetail groove and double supporting gantry, the cutting ismore stable and the vibration is less.
Model and Technical Parameters:
Model | Head of Principal Axis | Width of Conveyor | Dia of Disc | Motor power of Principal Axis |
YJ-1/600 | 1 | 620mm | Φ150/Φ250 | 15KW |
YJ-1/800 | 1 | 820mm | Φ150/Φ250 | 15KW |
Model | Motor power of Conveyor | Speed of Conveyor | Motor power of lifter | Cutting Width |
YJ-1/600 | 0.75KW | 0.8-4.0m/min | 0.75KW | 20-600mm |
YJ-1/800 | 0.75KW | 0.8-4.0m/min | 0.75KW | 20-800mm |
Model | Max Cutting Thickness | Total Capacity | Machine Size | Weight |
YJ-1/600 | 20mm | 16.5KW | 2110*1580*1630 | 1400KG |
YJ-1/800 | 20mm | 16.5KW | 2110*1780*1630 | 1500KG |
China Yongtao machinery is specialized in producing ceramic tile machine, cnc ceramic tile cutting machine, ceramic tile cutting machine, ceramic mosaic cutting machine, ceramic tile cutter, tile cutter, water jet cutting machine, 5 axis water jet cutting machine, water jet cutter, water jet, stone processing machine, stone surface profile machine, stone edging profile machine, welcome to enquiry.
