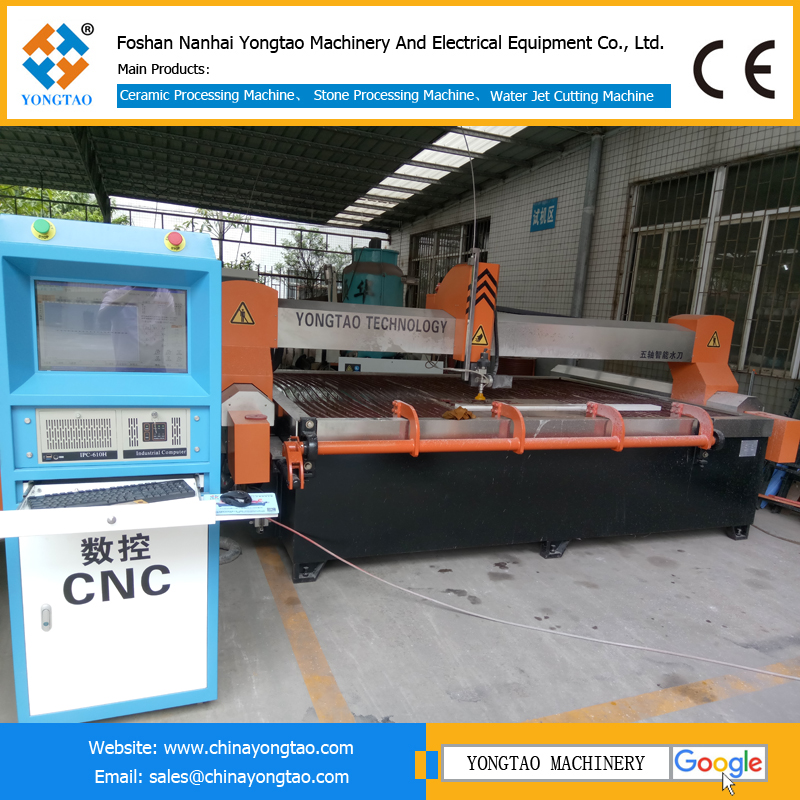

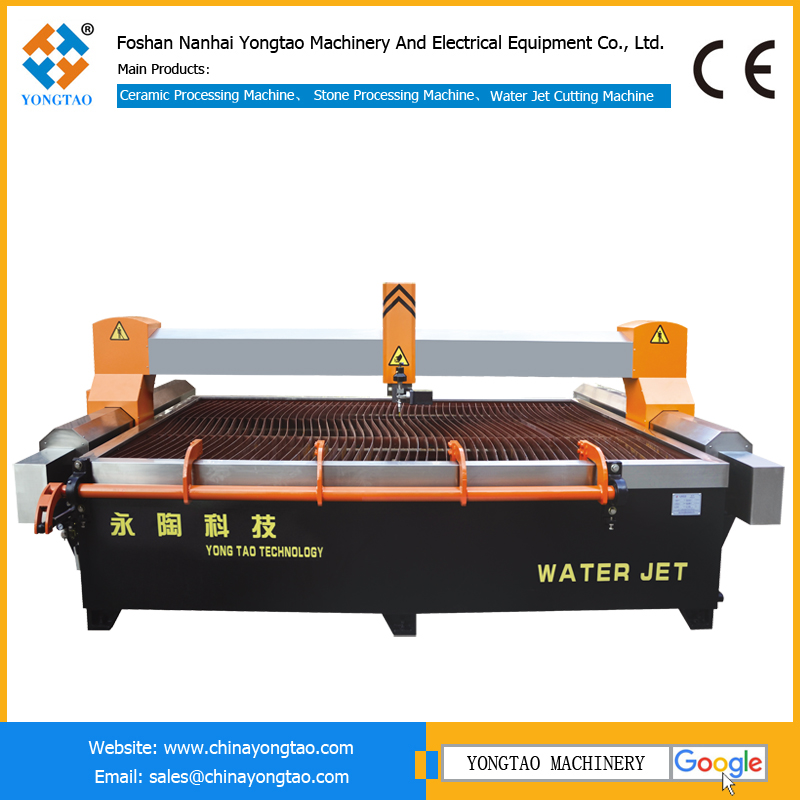

YJ3020 5-axis CNC water jet (Overturned platform)
(1) all steel of working talk made from GB steel,outsize seal design adopt stainless steel,beautiful and practical,durable in use.
(2) screw are adopt oil-immersed,waterproof and dustproof,assure the life of working table,using import brand servo motor.
(4) Screw:TAIWAN TBI
(5) Guide rail:TAIWAN TBI
(6) Motor type of longitudinal beam and cross beam:(TAIWAN)sevor motor
(7) Dustproof mode:stainless steel dustproof cover
(8) Material of working table appearance:stainless steel
(9) All electric cable:import
Parameter:
Serial | YT1313 | YT2015 | YT2515 | YT3020 | YT4020 | |||
Structure type | Cantilever type | Cantilever/bridge type | Bridge type | Bridge type | Bridge type | |||
Working table size | 1400*1400 | 2100*1600 | 2600*1600 | 3100*2100 | 4100*2100 | |||
Cutting stroke | X | 1200mm | 1500mm | 1500mm | 3000mm | 4000mm | ||
Y | 1200mm | 2000mm | 2500mm | 2000mm | 2000mm | |||
Z | 150mm | 150mm | 150mm | 150mm | 150mm | |||
CNC control system | Alternating current sevor | |||||||
Accuracy | Cutting accuracy | ±0.01mm | ||||||
Repeat accuracy | ±0.005mm | |||||||
Fast location speed | 6000mm/min | |||||||
Power supply | 200V/380v/415 50/60Hz | |||||||
item | parameter |
Application material | Almost all material |
Max cutting size | 2000*3000 |
Cutting accuracy | ±0.1mm |
Repeat accuracy | 0.025mm |
Fast location accuracy | 1-15m/min |
Max no-load speed | 8000mm/min |

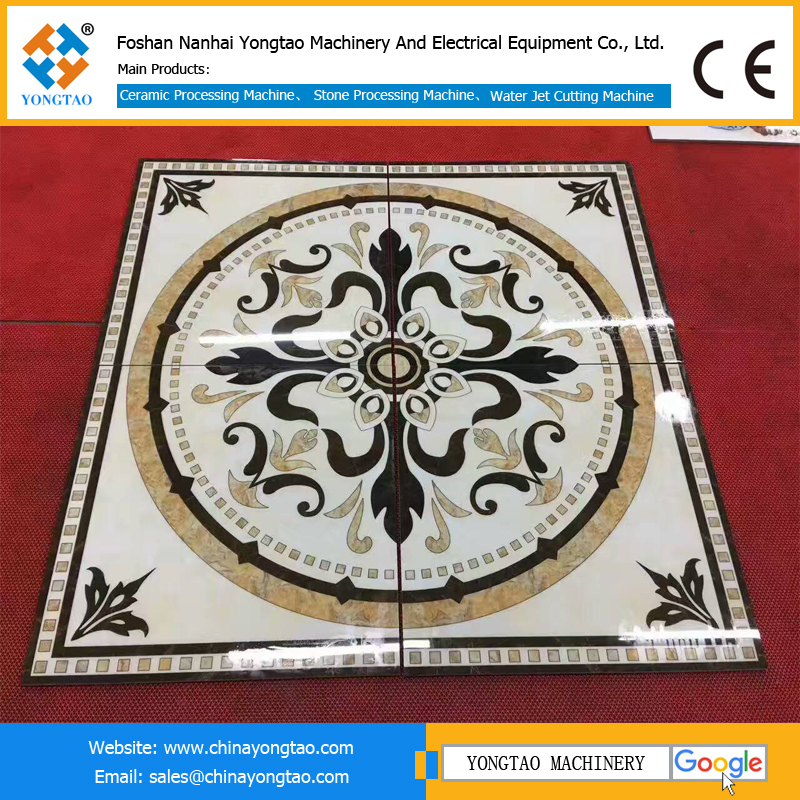

Max working speed | Polish tile：600*600 tile 1.8-2.0m/min 800*800 tile1.5-1.8m/min |

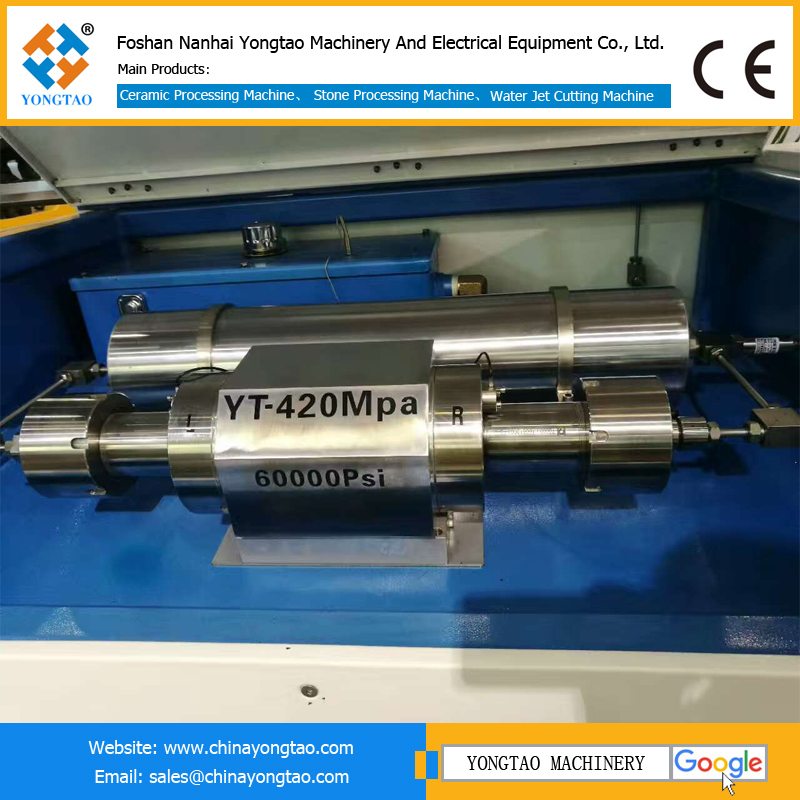

Max pressure | 420MPa |
Workable pressure | 350-380MPa |
0.4-0.8MPa | |
Max water displacement | 3.7L/min |

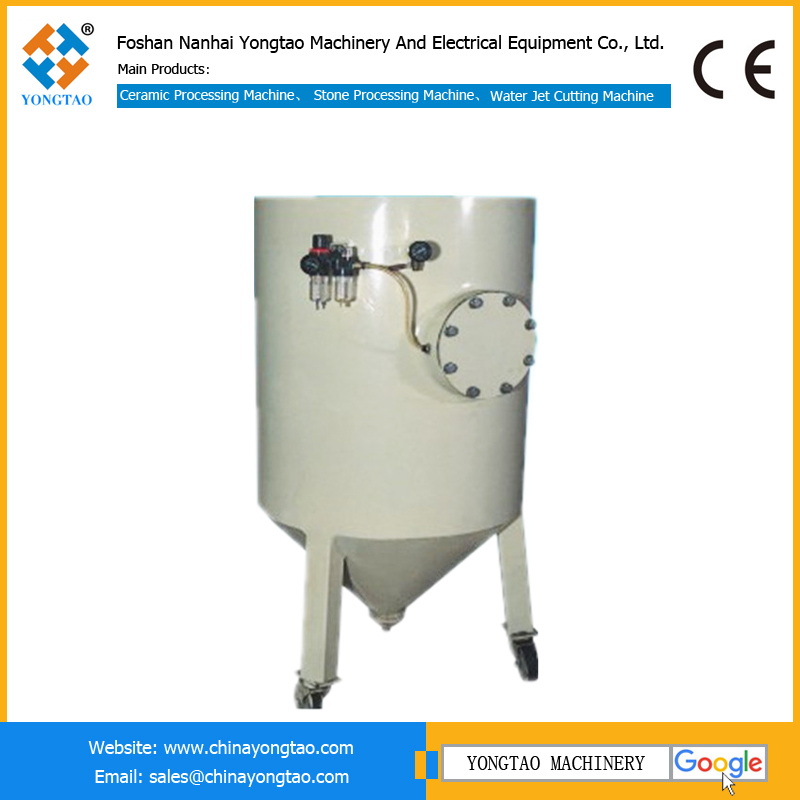

Max sand displacement | 190g/min |
Max number of stroke | 60次/min |
Z axis stroke | 130mm |

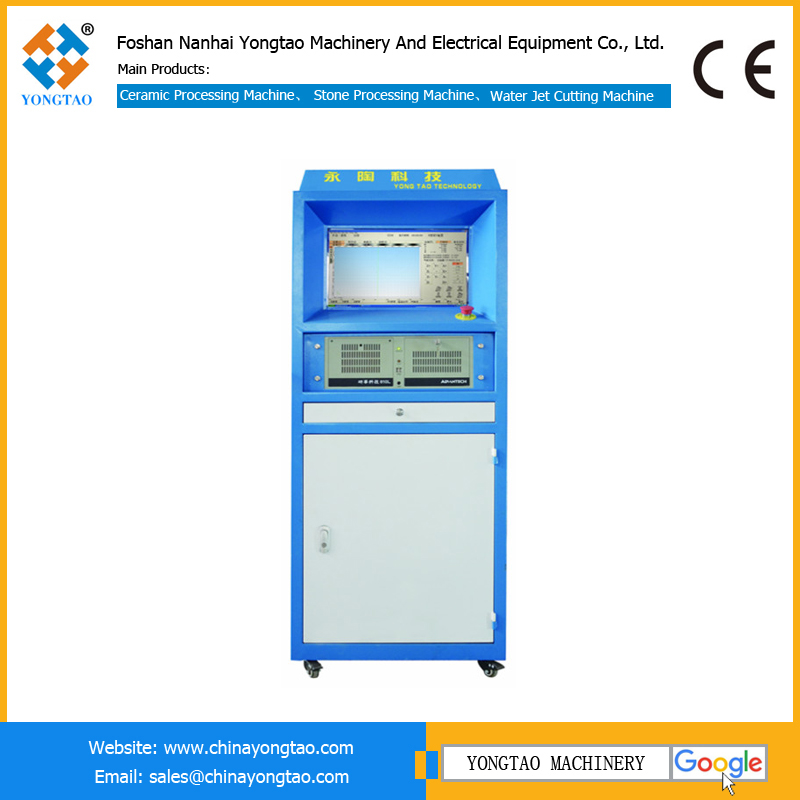

Control system | Windows XP |
Diameter of sand pipe nozzle | 1.0mm |
Diameter of gem nozzle | 0.33mm |
Drawing software | Auto CAD |
China Yongtao machinery is specialized in producing water jet cutting machine,5 axis water jet cutting machine,3 axis water jet cutting machine,YT1313 water jet cutting machine,YT2015 water jet cutting machine,YT3020 water jet cutting machine,sell water jet cutting machine.Yongtao water jet is the famous water jet machine manufacturer of China,supply water jet cutting machine for all over the world,welcome to enquiry
