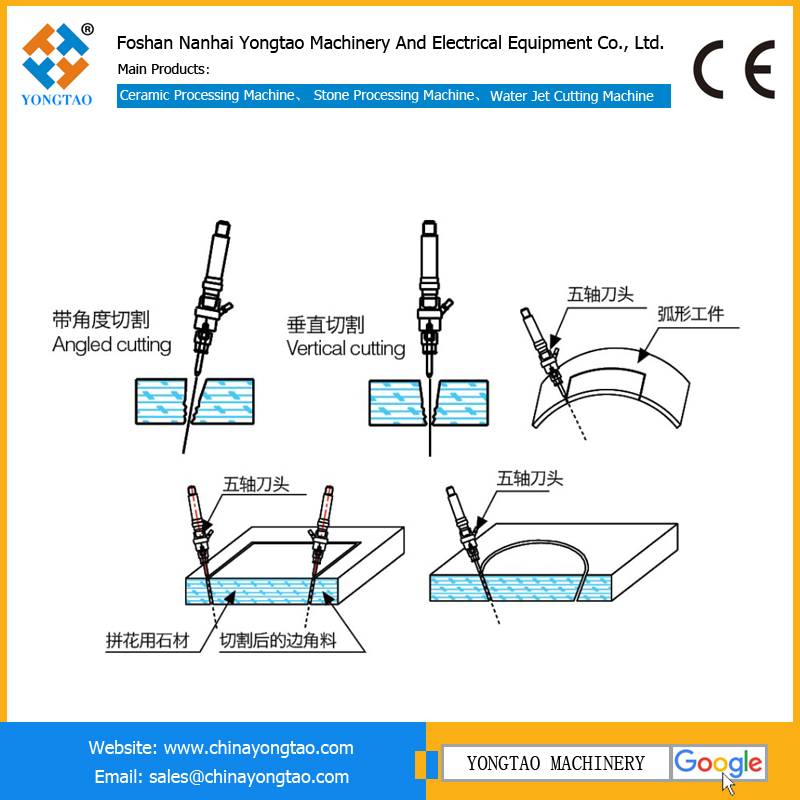

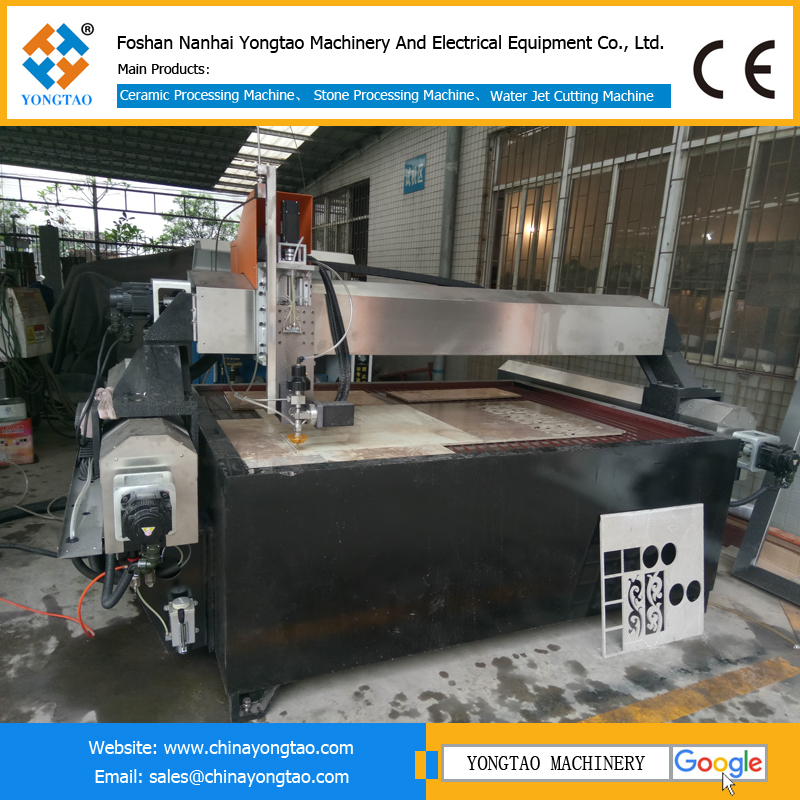

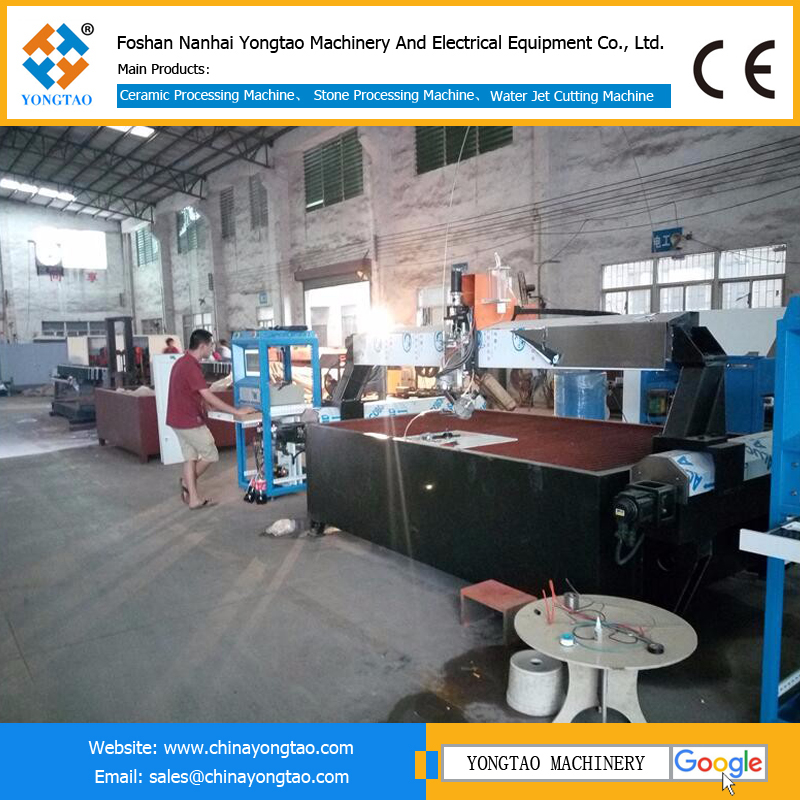

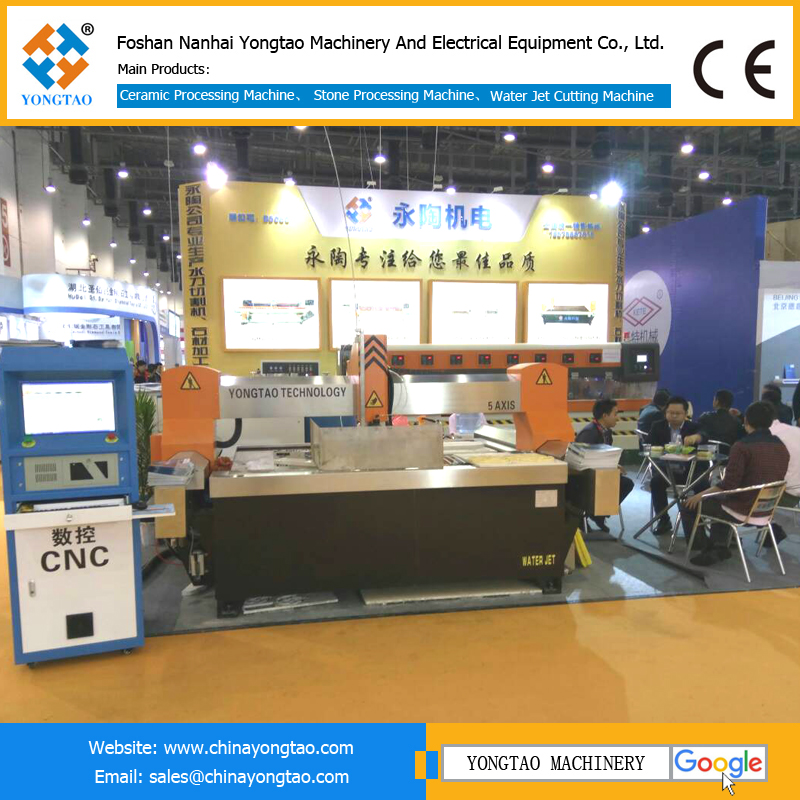

YJ2015 5-axis CNC water jet cutting machine
(1) all steel of working talk made from GB steel,outsize seal design adopt stainless steel,beautiful and practical,durable in use.
(2) screw are adopt oil-immersed,waterproof and dustproof,assure the life of working table,using import brand servo motor.
Screw:TAIWAN TBI
Guide rail:TAIWAN TBI
Motor type of longitudinal beam and cross beam:(TAIWAN)sevor motor
Dustproof mode:stainless steel dustproof cover
Material of working table appearance:stainless steel
All electric cable:import
Parameter:
Serial | YT1313 | YT2015 | YT2515 | YT3020 | YT4020 | |||
Structure type | Cantilever type | Cantilever/bridge type | Bridge type | Bridge type | Bridge type | |||
Working table size | 1400*1400 | 2100*1600 | 2600*1600 | 3100*2100 | 4100*2100 | |||
Cutting stroke | X | 1200mm | 1500mm | 1500mm | 3000mm | 4000mm | ||
Y | 1200mm | 2000mm | 2500mm | 2000mm | 2000mm | |||
Z | 150mm | 150mm | 150mm | 150mm | 150mm | |||
CNC control system | Alternating current sevor | |||||||
Accuracy | Cutting accuracy | ±0.01mm | ||||||
Repeat accuracy | ±0.005mm | |||||||
Fast location speed | 6000mm/min | |||||||
Power supply | 200V/380v/415 50/60Hz | |||||||
item | parameter |
Application material | Almost all material |
Max cutting size | 2000*3000 |
Cutting accuracy | ±0.1mm |
Repeat accuracy | 0.025mm |
Fast location accuracy | 1-15m/min |
Max no-load speed | 8000mm/min |
Max working speed | Polish tile：600*600 tile 1.8-2.0m/min 800*800 tile1.5-1.8m/min |
Max pressure | 420MPa |
Workable pressure | 350-380MPa |
0.4-0.8MPa | |
Max water displacement | 3.7L/min |
Max sand displacement | 190g/min |
Max number of stroke | 60次/min |
Z axis stroke | 130mm |
Control system | Windows XP |
Diameter of sand pipe nozzle | 1.0mm |
Diameter of gem nozzle | 0.33mm |
Drawing software | Auto CAD |
China Yongtao company is specialized in producing water jet cutting machinery:5 axis water jet cutting machine,high pressure water jet cutting machine,water jet pattern machinery,YT2015 water jet cutting machinery,YT3020 water jet cutting machinery. Ceramic tile processing machinery:ceramic tile cutting machine,ceramic tile edge grinding machine,ceramic tile grooving machine,ceramic tile chamfering machine,ceramic polishing machine,ceramic arc polishing machine.Stone processing machinery:stone cutting machine,stone edge grinding machine,stone line polishing machine,stone mosaic cutting machine,stone mosaic polishing machine,marble edge processing machinery,marble line processing machine,marble polishing machine,granite polishing machine,welcome to enquiry
YJ2015 5-axis CNC water jet cutting machine
(1) all steel of working talk made from GB steel,outsize seal design adopt stainless steel,beautiful and practical,durable in use.
(2) screw are adopt oil-immersed,waterproof and dustproof,assure the life of working table,using import brand servo motor.
Screw:TAIWAN TBI
Guide rail:TAIWAN TBI
Motor type of longitudinal beam and cross beam:(TAIWAN)sevor motor
Dustproof mode:stainless steel dustproof cover
Material of working table appearance:stainless steel
All electric cable:import
Parameter:
Serial | YT1313 | YT2015 | YT2515 | YT3020 | YT4020 | |||
Structure type | Cantilever type | Cantilever/bridge type | Bridge type | Bridge type | Bridge type | |||
Working table size | 1400*1400 | 2100*1600 | 2600*1600 | 3100*2100 | 4100*2100 | |||
Cutting stroke | X | 1200mm | 1500mm | 1500mm | 3000mm | 4000mm | ||
Y | 1200mm | 2000mm | 2500mm | 2000mm | 2000mm | |||
Z | 150mm | 150mm | 150mm | 150mm | 150mm | |||
CNC control system | Alternating current sevor | |||||||
Accuracy | Cutting accuracy | ±0.01mm | ||||||
Repeat accuracy | ±0.005mm | |||||||
Fast location speed | 6000mm/min | |||||||
Power supply | 200V/380v/415 50/60Hz | |||||||
item | parameter |
Application material | Almost all material |
Max cutting size | 2000*3000 |
Cutting accuracy | ±0.1mm |
Repeat accuracy | 0.025mm |
Fast location accuracy | 1-15m/min |
Max no-load speed | 8000mm/min |
Max working speed | Polish tile：600*600 tile 1.8-2.0m/min 800*800 tile1.5-1.8m/min |
Max pressure | 420MPa |
Workable pressure | 350-380MPa |
0.4-0.8MPa | |
Max water displacement | 3.7L/min |
Max sand displacement | 190g/min |
Max number of stroke | 60次/min |
Z axis stroke | 130mm |
Control system | Windows XP |
Diameter of sand pipe nozzle | 1.0mm |
Diameter of gem nozzle | 0.33mm |
Drawing software | Auto CAD |
China Yongtao company is specialized in producing water jet cutting machinery:5 axis water jet cutting machine,high pressure water jet cutting machine,water jet pattern machinery,YT2015 water jet cutting machinery,YT3020 water jet cutting machinery. Ceramic tile processing machinery:ceramic tile cutting machine,ceramic tile edge grinding machine,ceramic tile grooving machine,ceramic tile chamfering machine,ceramic polishing machine,ceramic arc polishing machine.Stone processing machinery:stone cutting machine,stone edge grinding machine,stone line polishing machine,stone mosaic cutting machine,stone mosaic polishing machine,marble edge processing machinery,marble line processing machine,marble polishing machine,granite polishing machine,welcome to enquiry
